Re: huge CPU load after UEK upgrade

Thanks a lot Tanel for the valuable information.

mpstat will show me 0 load for %irq , on average each core is around 15-20% in %usr space and 35-40% in %sys space.

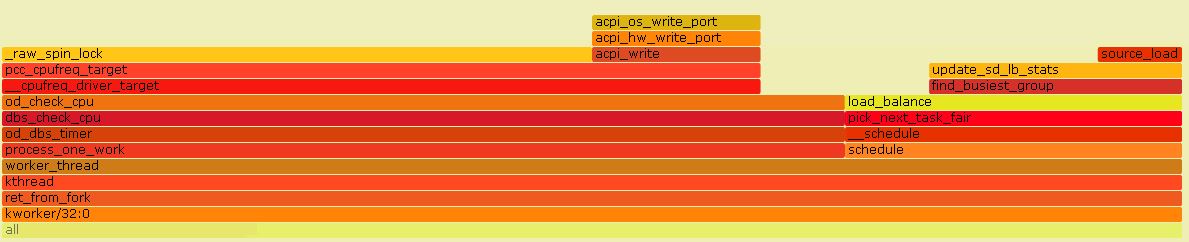

By looking into a section of FG it looks like *kworker *is the culprit for *_raw_spin_lock
and *and *acpi_os_write_port. *

I`m somehow at a dead end as I`m not able to request a bug fix for it as this is OL6 . Any ideas on what I can do as a workaround?

În mie., 18 aug. 2021 la 10:48, Tanel Poder <tanel_at_tanelpoder.com> a scris:

> Sorry, been swamped and haven't had time to lurk around oracle-l threads
> :-)
>
> The kworker threads do asynch I/O stuff in Linux kernel (among other
> stuff). So, when using libaio, you'd see kworkers involved in I/Os and
> apparently asmlib also ends up using kworkers under the hood (I never
> looked into asmlib in detail, but the psn/kstack output indicates kworker
> use too).
>
> I'd say it's some asmlib/kernel bug, especially if you didn't do any
> hardware changes, like this one:
>
> *Oracle Linux : OL6 Running On Exadata Observes A Particular CPU Comsumes
> High CPU Under Low System Load by kworker and ksoftirqd (Doc ID 2645898.1)
> - "Known issue with kernel version 4.1.12-124.24.3.el6uek.x86_64 and
> lower." *
>
> Sometimes various interrupt storms & issues can also cause this weird
> behavior - *mpstat* would show how much (CPU) time you spend on
> hardware/software interrupts.
>
> If you click on some of the stack sections on the very busy looking
> left-side of the *FG_UEK4_all_30seconds.jpg* screenshot, what do you see?
>
> Note that the intel_idle and related stack frames always show up anyway
> when you use perf -a, as that option reports all *CPU* time of all CPUs
> (including CPU idle time, which is not the same as a process/thread idle
> time, essentially it's CPU's time spent in
> no-work/low-power-suspend/poweroff states). This is different from perf
> record -p behavior as -p would only show on-CPU samples of a process/thread
> and not show off-CPU samples *of a process/thread*.
>
> As you see lots of *_raw_spin_lock* contention (CPU time spent to acquire
> a spinlock in that function), look up (with the FlameGraph search box, like
> I did in my blog entry), who calls that function? That would tell you which
> type of spinlock has that contention.
>
> Also the fact that you see lots of *acpi_os_write_port* calls is weird.
> As so frequently interacting with hardware via I/O ports (instead of DMA)
> so that this *acpi_os_write_port* function shows up in the top CPU users,
> also indicates some sort of a kernel<->hardware communication issue... see
> what functions are its parents, grandparents, it may provide extra insight.
>
> --
> Tanel Poder
> https://tanelpoder.com/events
>
>
> On Fri, Aug 13, 2021 at 9:54 AM Laurentiu Oprea <
> laurentiu.oprea06_at_gmail.com> wrote:
>
>> quite suspicious is that running :
>> perf record -F 99 -g a sleep 30
>> and looking in FG looks like the word "idle" is a big chunk of it.
>>
>> În vin., 13 aug. 2021 la 11:25, Laurentiu Oprea <
>> laurentiu.oprea06_at_gmail.com> a scris:
>>
>>> Thanks a lot for all the answers. Taking in order of what I tried:
>>>
>>> -> booting with acpi=off will apparently make the system see just 1 cpu
>>> core / booting with acpi=ht I`ll not have the single cpu issue but my
>>> load/slowness issue remains there -> not sure what I can explore more on
>>> this subject
>>>
>>> -> On this particular rac cluster I have around 32 databases, I observed
>>> that starting just 8 instances on the upgrade node will not generate a
>>> significant CPU load, starting 12 or more will make the situation far worse
>>> (the other 2 nodes with UEK3 are running perfectly well with all instances
>>> up) . So I started just 8 instances and I wrote a test query (simple select
>>> with group by, all significant ash time being spent on CPU) that executed
>>> on the upgraded node will run in 68 seconds while on non-upgraded node will
>>> run in 38. I sampled with psn the spid of the session while running the
>>> statement and also I sampled with perf and generated a flamegraph.
>>>
>>> From FG I might conclude that all the calls are identical from a
>>> distribution perspective is just that each call takes longer time .
>>> From PSN Looks like the majority of samples are on CPU with no kstack
>>> (-) or retin_carefull(), is just that on nodes running UEK3 is running
>>> faster so less samples are collected.
>>>
>>> I`m starting to think that there is actually a general slowness running
>>> UEK4 compared with UEK3 (and maybe seeing those kworker process is just a
>>> side effect) While the system is slow the kstack for kworkers is just:
>>> ret_from_fork() ->kthread -> worker_thread() )
>>>
>>> Basically I`m out of ideas, so any suggestions are very welcomed :)
>>>
>>> Thank you.
>>>
>>>
>>>
>>>
>>> În joi, 12 aug. 2021 la 20:29, Tanel Poder <tanel_at_tanelpoder.com> a
>>> scris:
>>>
>>>> Oh, UEK 4 is Linux kernel 4.1.x, I don't recall if that bug/problem
>>>> exists there, but you can still use the techniques from my blog entry to
>>>> drill down deeper. One of the main questions is - is your Linux system load
>>>> high due to on-CPU threads or threads in D state. perf record -g would help
>>>> you drill down more into the CPU usage and from the full stack traces you'd
>>>> see which kernel functions are trying to get that spinlock you already saw
>>>> contention on, but if it's mostly D state sleeping threads, then
>>>> /proc/PID/stack or psnapper would tell you more.
>>>>
>>>> On Thu, Aug 12, 2021 at 1:26 PM Tanel Poder <tanel_at_tanelpoder.com>
>>>> wrote:
>>>>
>>>>> Hi,
>>>>>
>>>>> Run psnapper or just sudo cat /proc/PID/stack for some of the Oracle &
>>>>> kworker processes (that are in D state) and check if you have
>>>>> *wbt_wait* in the stack. UEK 4 (kernel 4.14) has a Linux kernel write
>>>>> throttling bug/problem and lots of kworkers showing up is one of the
>>>>> symptoms. I've written about drilling down into high Linux system load in
>>>>> general here:
>>>>>
>>>>>
>>>>> https://tanelpoder.com/posts/high-system-load-low-cpu-utilization-on-linux/
>>>>>
>>>>> Incidentally, this is one of the problem scenarios I cover at the
>>>>> upcoming "troubleshooting very complex Oracle performance problems" virtual
>>>>> "conference" (where all speakers are me -
>>>>> https://tanelpoder.com/events ;-)
>>>>>
>>>>> --
>>>>> Tanel Poder
>>>>>
>>>>>
>>>>> On Thu, Aug 12, 2021 at 2:41 AM Laurentiu Oprea <
>>>>> laurentiu.oprea06_at_gmail.com> wrote:
>>>>>
>>>>>> Hello everyone,
>>>>>>
>>>>>> I know this is more of a linux question but maybe someone had a
>>>>>> similar issue.
>>>>>>
>>>>>> I started to upgrade the kernel version from UEK3 to UEK4 on servers
>>>>>> (rac 2/3 nodes) running OL6. I had no issue upgrading the kernel on virtual
>>>>>> machines.
>>>>>>
>>>>>> When I upgraded the first rac node located on physical hardware,
>>>>>> after starting the oracle instances the cpu load went crazy, the whole
>>>>>> system was far slower. For example the cpu load on the other rac nodes with
>>>>>> UEK3 was 4/3/3/ while the upgraded node load was 107/104/77 with only half
>>>>>> the instances started, this workload being created even if the instances
>>>>>> had no significant workload (they were just started)
>>>>>>
>>>>>> I observed that with the new kernel version when oracle
>>>>>> instances start there is quite a big number of kworker processes. Perf top
>>>>>> will show me as overhead
>>>>>> 17.24% [kernel] _raw_spin_lock
>>>>>> 4.50% [kernel] acpi_os_write_port
>>>>>>
>>>>>> Does anyone have any idea on what could be the issue?
>>>>>>
>>>>>> THanks a lot.
>>>>>>
>>>>>

--
