Problem with section breaks in XML Publisher template [message #120941]

Tue, 24 May 2005 19:42

dmoser22
Messages: 6
Registered: May 2005
Location: San Diego

Junior Member

Is there any way to use section breaks in XML Publisher? I haven't been able to get them to work, and now I have desperate need of them.

My template (.rtf) will be used to generate multiple POs from one batch of output, so I need to have section breaks in order to reset the page number. Without this, my headers are shot (there are different headers on page 1 vs remaining pages, so the page 1 version needs to reappear with each PO), as well as the "Page x of y" in the header.

Any suggestions?

Dave

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #124198 is a reply to message #120941]

Thu, 16 June 2005 16:56

tdexter
Messages: 2
Registered: June 2005

Junior Member

Dave
Not sure what version you are on but from 5.0 forward we allow you to break in the way you want. Rather than using for-each:GROUP_NAME you use for-each@section:GROUP_NAME, every time xmlp hits a new member of GROUP_NAME the page numbering and header is reset. I have loaded a sample try it out.
Regards
Tim

Attachment: RepeatingHeader.zipp
(Size: 18.74KB, Downloaded 4115 times)

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #124202 is a reply to message #124198]

Thu, 16 June 2005 17:31

dmoser22
Messages: 6
Registered: May 2005
Location: San Diego

Junior Member

Outstanding! Thanks for your help. (Of course, I've only tried it in Template Builder, but I'm assuming it will still work when we implement it in Oracle Apps.)

Sure would've been handy if this were included in the 5.0 User's Guide!

Thanks again, Cool

-djm

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #124465 is a reply to message #124202]

Sat, 18 June 2005 18:06

tdexter
Messages: 2
Registered: June 2005

Junior Member

Yeah, sorry, we didnt have enough time. The 5.5 release docs are in much better shape.
Tim

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #125378 is a reply to message #120941]

Fri, 24 June 2005 15:30

cincyn
Messages: 1
Registered: June 2005

Junior Member

Is there a way to combine section break with multi header/footer? (<?start:body?> <?end body?>)

I have similar issue, but our POs (and S/O acknowledgements) repeat the same header info (ship/bill address...etc.) on each page. I can get the multi header/footer to work, but then it will not print multiple PO/SOs from batch output.

Any ideas/suggestions would be appreciated.

Thank you,

Cindy

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #135952 is a reply to message #120941]

Mon, 05 September 2005 02:21

laywema
Messages: 3
Registered: June 2005

Junior Member

Hi,
I'm having the same problem with pagenumbering so I tried the RepeatHeader.rtf example in Template Builder (1.0.0 Build 9 on WinXP SP2, MS Office XP SP3) with the supplied RepeatHeader.xml. I got very strange output; pdf-output showed Page 1 of 3 till Page 3 of 3, the last page was Page 1 of 3. RTF-output showed Page 1 of 3 till Page 3 of 3, the last page was Page 4 of 1.
Is something wrong with my configuration?
Regards,
Louis

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #138029 is a reply to message #135952]

Mon, 19 September 2005 08:12

laywema
Messages: 3
Registered: June 2005

Junior Member

Hi all!
My problem seems to be solved in version 5.5!
ciao,
Louis

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #160019 is a reply to message #124198]

Wed, 22 February 2006 15:48

chollack
Messages: 1
Registered: February 2006

Junior Member

Is there a way to have your heading repeat on the section level but your pages NOT reset?

I have been using the for-each@section syntax, and get the desired behavior on my headings and page breaks, but I never want the page numbers to reset.

Thanks,
Carrie

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #236555 is a reply to message #124198]

Thu, 10 May 2007 04:39

mardaff
Messages: 1
Registered: May 2007

Junior Member

tdexter wrote on Thu, 16 June 2005 16:56

Hi,
I have the same problem with the page numbering.... I want my page numbering to be reset by customer.... I did like in your example but it's still not working. I'm using XML Publisher 5.6.2
and even your example is not working on my side....can you tell me where it's seems to be the problem?

Thx

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #322890 is a reply to message #236555]

Mon, 26 May 2008 11:50

charifennaciri
Messages: 2
Registered: May 2008

Junior Member

Dear mardaff,

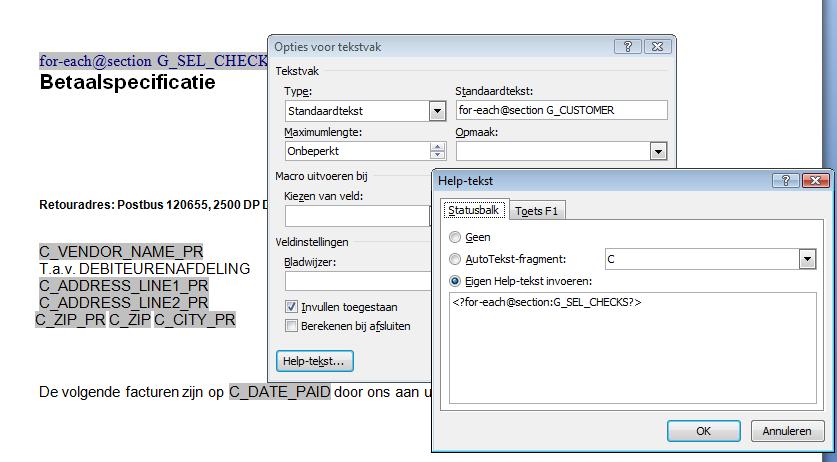

It's important that you insert the statement <?for-each@section:G_SEL_CHECKS?> (in your case customer)in the help section of the text options screen. I made a screenshot of it.

http://img225.imageshack.us/done.php?l=img225/7493/xmlpublisherondersteunigi7.jpg

And also try to use a Page Break at the end of the document. The code for a page break is:

<?split-by-page-break:?>

This should definetely work.

Greetings,

Charif Ennaciri

Attachment: xmlpublisherondersteuning.jpg
(Size: 57.03KB, Downloaded 2113 times)

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #361990 is a reply to message #124198]

Sat, 29 November 2008 03:44

tejsoni392
Messages: 1
Registered: November 2008

Junior Member

Hi,

At my end this code does not work could you please tell me the solution.

Page number is not refreshing here
Can you please reply to tejas.ranpara@tcs.com

Find attachement here.(this is zip file i have changed the extension to text becoz it was not allow me to uploded
please open attached file in zip

Rgds/Tejas Ranpara

Attachment: New Folder.txt
(Size: 28.10KB, Downloaded 2395 times)

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #361993 is a reply to message #361990]

Sat, 29 November 2008 05:42

charifennaciri
Messages: 2
Registered: May 2008

Junior Member

Hello Tejas,

Your code is just fine! In your XML Data you only have 2

G_customers. One with a lot of data (first 24 pages).

And the second one which has just a few invoices. And

I see that for the second one the page number does reset.

So your code is ok.

Greetings,

Charif Ennaciri

Report message to a moderator

Re: Problem with section breaks in XML Publisher template [message #385626 is a reply to message #124198]

Tue, 10 February 2009 05:19

rev.prakash@gmail.com
Messages: 1
Registered: February 2009
Location: chennai

Junior Member

I am facing a similar issue i tried using the ZIP file provided above however the report still places the same heading across report and page number doesnt get reset.Place provide if any update or code.

Report message to a moderator
