Add Stack Canvas on a Tab Canvas [message #449614] Tue, 30 March 2010 23:59 Go to next message
allianz2010
Messages: 101
Registered: October 2009
Location: Pakistan
Senior Member
I want to create a tabular type form on a tab canvas.. but my fields are often out of the form range. i want to create a stack canvas on tab canvas but it say that stack canvas and tab canvas must be created within content canvas.

how can i manage it what can i do now..

i also attached pic of my tab canvas..
i show some fields on tab canvas and 3 more fields i inserted on this canvas.

and i can't reduced the width of my fields.
please tell me about any other way which i use.
  • Attachment: Tabcanvas.JPG
    (Size: 42.75KB, Downloaded 1661 times)

Report message to a moderator

Re: Add Stack Canvas on a Tab Canvas [message #449627 is a reply to message #449614] Wed, 31 March 2010 01:17 Go to previous messageGo to next message
Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe
Senior Member
Account Moderator
As far as I can tell, there's no problem in doing that ...

Quote:
it say that stack canvas and tab canvas must be created within content canvas

Who is "it"?

Did you, actually, try to create a stacked canvas on a tabbed canvas? I did quite a few times and I can't remember there were any issues (except annoying calculation of where to place a stacked canvas).

Here's a quick and dirty sample created in a few minutes - works just fine.

/forum/fa/7650/0/

Report message to a moderator

Re: Add Stack Canvas on a Tab Canvas [message #449631 is a reply to message #449627] Wed, 31 March 2010 01:59 Go to previous messageGo to next message
allianz2010
Messages: 101
Registered: October 2009
Location: Pakistan
Senior Member
Thanks for your reply :

Sir i m using Forms 6i and when i want to create the Stack canvas on tab canvas then error comes.

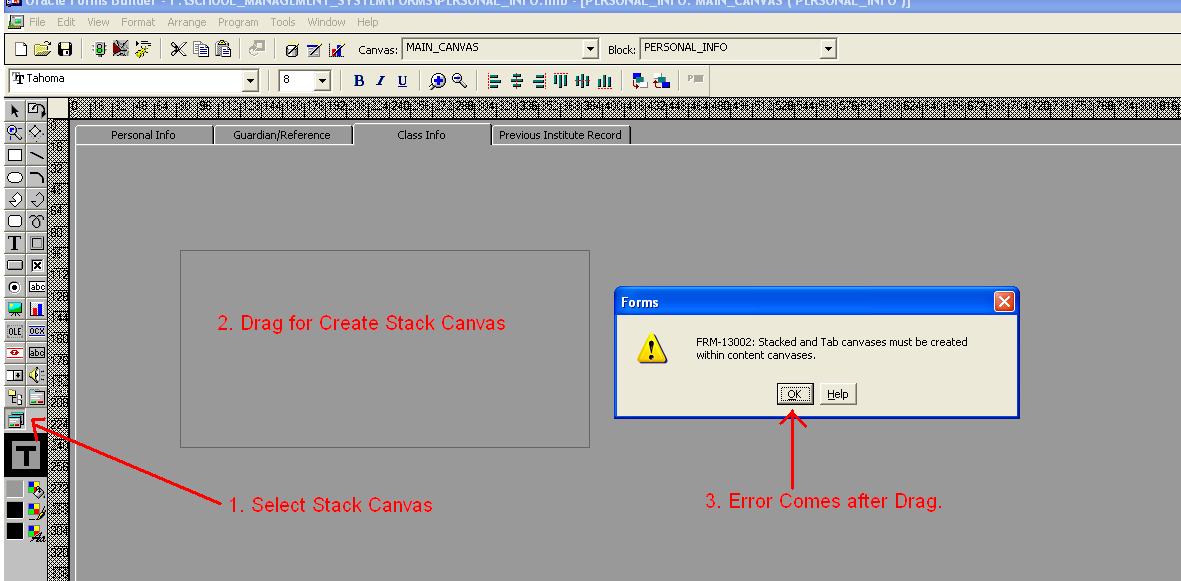

sir i also attached the error screen..

in this screen
1. i select Stack canvas on tool bar.
2. i drag the stack canvas for create the stack canvas.
3. then error comes..

[Updated on: Wed, 31 March 2010 01:59]

Report message to a moderator

Re: Add Stack Canvas on a Tab Canvas [message #449634 is a reply to message #449631] Wed, 31 March 2010 02:27 Go to previous messageGo to next message
Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe
Senior Member
Account Moderator
Don't do it that way - create a stacked canvas in Object Navigator instead.

Report message to a moderator

Re: Add Stack Canvas on a Tab Canvas [message #449652 is a reply to message #449634] Wed, 31 March 2010 04:16 Go to previous message
sinida1984
Messages: 83
Registered: September 2007
Location: India
Member
In the property palette of the stacked canvas which you created from object navigator, please update viewport X position and Viewport Y position correctly

Regards
Sinida

Report message to a moderator
