IMAGE ON FORM 6i [message #415103]

Fri, 24 July 2009 15:56

kilimanjaro
Messages: 151
Registered: May 2009
Location: Tanzania

Senior Member

HI EVERYONE
Please assist me on how to display an image(blob) on a form . i have tried all i could but still failed to display it on the form.Yes i searched the forum without any break through.
below is the code i used to create data block and upload photos (JPG). the only problem am facing is retrieving them from forms. am using form 6i 10g database.
Thankyou.
i ll applreciate if one gives me a step by step on doin this.
the below code works fine.

conn system

grant connect, resource, imp_full_database, exp_full_database to en;

grant create any directory to EN;
grant create any library to EN;

GRANT EXECUTE ON CTX_DDL en;

CONN en/en@pacific
Connected

CREATE TABLE my_docs (
id NUMBER(10) NOT NULL,
name VARCHAR2(200) NOT NULL,
doc BLOB NOT NULL
)

ALTER TABLE my_docs ADD (
CONSTRAINT my_docs_pk PRIMARY KEY (id)
);

CREATE SEQUENCE my_docs_seq;

CREATE OR REPLACE DIRECTORY documents AS 'C:\work';

CREATE OR REPLACE PROCEDURE load_file_to_my_docs (p_file_name IN my_docs.name%TYPE) AS
v_bfile BFILE;
v_blob BLOB;
BEGIN
INSERT INTO my_docs (id, name, doc)
VALUES (my_docs_seq.NEXTVAL, p_file_name, empty_blob())
RETURN doc INTO v_blob;
v_bfile := BFILENAME('DOCUMENTS', p_file_name);
Dbms_Lob.Fileopen(v_bfile, Dbms_Lob.File_Readonly);
Dbms_Lob.Loadfromfile(v_blob, v_bfile, Dbms_Lob.Getlength(v_bfile));
Dbms_Lob.Fileclose(v_bfile);
COMMIT;
END
;
/

-- CREATE A FOLDER NAMED WORK IN C DRIVE OF ORACLE SERVER MACHINE & PUT THE IMAGE FILE (APPL_FORM.PDF,CIMG1860.JPG)
-- YOU WANT TO STORE IN ORACLE TABLE IN THAT FOLDER. THEN EXECUTE THE PROCEDURE load_file_to_my_docs.

EXEC load_file_to_my_docs('APPL_FORM.PDF');

EXEC load_file_to_my_docs('CIMG1860.JPG');

COMMIT;

Report message to a moderator

Re: IMAGE ON FORM 6i [message #415269 is a reply to message #415103]

Mon, 27 July 2009 00:19

djmartin
Messages: 10181
Registered: March 2005
Location: Surges Bay TAS Australia

Senior Member
Account Moderator

Although you may be using Oracle Forms, your question is more SQL related that Forms related. I will move your thread.

David

Report message to a moderator

Re: IMAGE ON FORM 6i [message #415277 is a reply to message #415103]

Mon, 27 July 2009 00:52

Michel Cadot
Messages: 68733
Registered: March 2007
Location: Saint-Maur, France, https...

Senior Member
Account Moderator

And the problem is?

Please read OraFAQ Forum Guide, especially "How to format your post?" section.
Make sure that lines of code do not exceed 80 characters when you format.
Indent the code (See SQL Formatter), use code tags and align the columns in result.
Use the "Preview Message" button to verify.
Also always post your Oracle version with 4 decimals.

Regards
Michel

Report message to a moderator

Re: IMAGE ON FORM 6i [message #415283 is a reply to message #415269]

Mon, 27 July 2009 01:10

kilimanjaro
Messages: 151
Registered: May 2009
Location: Tanzania

Senior Member

Hi Davd, my problem isnt sql .my problem is retrieving image stored on a datablock from oracle forms 6i .i have searched the forum but still failed to solve my problem.
Thankyou.

Report message to a moderator

Re: IMAGE ON FORM 6i [message #415285 is a reply to message #415269]

Mon, 27 July 2009 01:11

Frank
Messages: 7901
Registered: March 2000

Senior Member

djmartin wrote on Mon, 27 July 2009 07:19

Although you may be using Oracle Forms, your question is more SQL related that Forms related. I will move your thread.

David

The OP mentioned that the code does work fine, he just doesn't seem to know how to implement this in Forms. I wonder why you think this is not For128232716531729
Content-Disposition: form-data; name="msg_id"

415285

[Updated on: Mon, 27 July 2009 01:12]

Report message to a moderator

Re: IMAGE ON FORM 6i [message #415298 is a reply to message #415285]

Mon, 27 July 2009 02:45

djmartin
Messages: 10181
Registered: March 2005
Location: Surges Bay TAS Australia

Senior Member
Account Moderator

Sorry guys, I saw all that SQL in the first post and assumed the OP posted it because they had a problem with it.

Search this forum for 'blob image'. There are tons of threads and some even have working code attached. Basically, create a form with a block based on your table, run the form as it is presented and it should work. If not then you need to do something in the post-query to populate the image. I can't remember which.

David

Report message to a moderator

Re: IMAGE ON FORM 6i [message #415315 is a reply to message #415103]

Mon, 27 July 2009 04:29

shahzaib_4vip@hotmail.com
Messages: 410
Registered: December 2008
Location: karachi

Senior Member

Your Code is working fine its show me the picture which i put in c:\work

Let me know whats the error coming

Regards

Shahzaib ismail

Report message to a moderator

Re: IMAGE ON FORM 6i [message #415352 is a reply to message #415298]

Mon, 27 July 2009 06:16

kilimanjaro
Messages: 151
Registered: May 2009
Location: Tanzania

Senior Member

hi shaz.Thankyou very much for your quick reply.
may be am doin it wrong somewhere.just help please me with the codes to write on the actual form.Also i want the blob image retrieved to match with employee_number field on the form(:employee_details.employee_number).
am using forms 6i and 10G databaSE.

Thankyou.
Goodtimes.

Report message to a moderator

Re: IMAGE ON FORM 6i [message #486543 is a reply to message #415103]

Thu, 16 December 2010 06:27

shafaat
Messages: 3
Registered: December 2010
Location: Quetta

Junior Member

Dear
I am new in oracle I using oracle 9i Database and Form 6i want to display picture through form control

I try your code it work on SQL screen but it not work on form please help me and solve my problem your reply if very urgent required send on this email address shafaatali_8@yahoo.com

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604006 is a reply to message #486543]

Sun, 22 December 2013 11:49

shahzad-ul-hasan
Messages: 643
Registered: August 2002

Senior Member

Create folder on any drive like D:\photo:

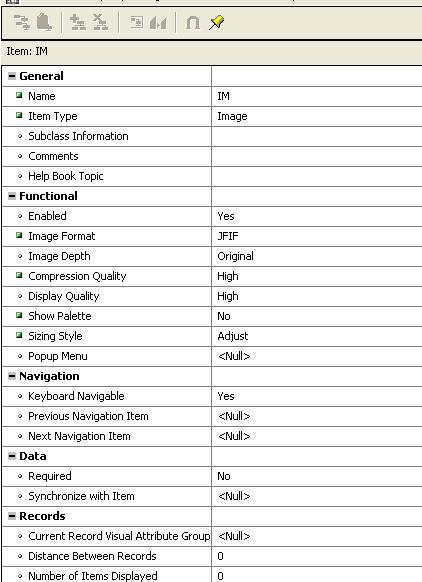

createan image item on form and set database property to no.also see that pictureof prperty pallet.
/forum/fa/11479/0/

/forum/fa/11479/0/

then use this code in post query at form level.

DECLARE
tiff_image_dir VARCHAR2(80) := 'D:\Photo\';
photo_filename VARCHAR2(80);
BEGIN
:System.Message_Level := '25';
photo_filename := tiff_image_dir||LOWER(:IID)||'.JPG';

READ_IMAGE_FILE(photo_filename, 'JPEG', 'inout.im');
IF NOT FORM_SUCCESS THEN
MESSAGE('This Student does not have a photo on file.');
END IF;
:SYSTEM.MESSAGE_LEVEL := '0';
END;

Attachment: Image25.JPG
(Size: 49.49KB, Downloaded 10680 times)

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604112 is a reply to message #604006]

Tue, 24 December 2013 03:48

kilimanjaro
Messages: 151
Registered: May 2009
Location: Tanzania

Senior Member

Hi Shahzad-ul-hasan

Thank you for your assistance.

i have done everything as you instructed Unfortunately I'm getting an error when I compile and the error is related to (:IID).

The actual scenario of my form is, it has a unique reg number plus other Items and now an image has to be linked to reg number. How do I do it chief?

Thank you,Merry Christmas.

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604124 is a reply to message #604112]

Tue, 24 December 2013 04:45

ranamirfan
Messages: 535
Registered: January 2006
Location: Pakistan / Saudi Arabia

Senior Member

ranamirfan@gmail.com

Quote:

I'm getting an error when I compile and the error is related to (:IID).

The reg number & Image Name should be same.

Regards,
Irfan

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604147 is a reply to message #415103]

Tue, 24 December 2013 20:38

shahzad-ul-hasan
Messages: 643
Registered: August 2002

Senior Member

Dear brother,
Mr. Irfan is correct.please replace iid with your unique reg no.

[Updated on: Tue, 24 December 2013 20:38]

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604164 is a reply to message #604147]

Wed, 25 December 2013 07:28

mughals_king
Messages: 392
Registered: January 2012
Location: pakistan

Senior Member

have you solved your problem

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604225 is a reply to message #604164]

Thu, 26 December 2013 07:53

jgjeetu
Messages: 373
Registered: July 2013
Location: www.Orafaq.com/Forum

Senior Member

jgjeetu@gmail.com

its very simple and easy bro , just follow these steps (working for both 6i and 10g)

Step 1:-
>create table images(id number ,pic long raw)
>insert into images (id) values(1)
>insert into images (id) values(2)
>commit;

Step 2:-
now open form bulider 6i or 10g
b. create a block using imaages as base table
3. select layout style as 'form'
4. now in layout editor i.e F2 select image and press F11(or right click then select smart tiggers)
you can use when_mouse_doubleclick / when_mouse_click /when_image_pressed or when_image_activated etc
Now add this code inside trigger:-
read_image_file('c:\123.jpg','jpg','block.itemname'); i.e (imagepath,imagetype,imageitem)
step 3:-
Now everything is done , run you form Smile

Smile

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604896 is a reply to message #604225]

Sun, 05 January 2014 17:09

kilimanjaro
Messages: 151
Registered: May 2009
Location: Tanzania

Senior Member

Hi Shahzad-ul-hasan,

Happy new year.

Sorry for the late come back and Thank you for your help .Unfortunately it doesn't work. I corrected the IID issue and compiled successful.But I get an error "unable to resolve reference to item out.im"

Any help?

Thank again

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604908 is a reply to message #604896]

Mon, 06 January 2014 00:30

ranamirfan
Messages: 535
Registered: January 2006
Location: Pakistan / Saudi Arabia

Senior Member

ranamirfan@gmail.com

Dear,
Quote:

I get an error "unable to resolve reference to item out.im

Check your Image Item name I am thinking you put your Image Item name wrong in code.

Regards,
Irfan

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604916 is a reply to message #604225]

Mon, 06 January 2014 02:46

kilimanjaro
Messages: 151
Registered: May 2009
Location: Tanzania

Senior Member

Hi Igjeetu

I have Google everywhere still not getting it.I want the image to match the ren_number on the form this is what i have done so far.

create table graphics_table(
bfile_id varchar(20),
bfile_loc bfile,
bfile_type varchar2(4)
)
/

then

INSERT INTO graphics_table
VALUES(4,bfilename('C:\PHOTO\','SRB000002.JPG'),'JPEG');

ist right?

what do I right on the form now?

Please help.

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604917 is a reply to message #604896]

Mon, 06 January 2014 02:47

kilimanjaro
Messages: 151
Registered: May 2009
Location: Tanzania

Senior Member

Hi

I have Google everywhere still not getting it.I want the image to match the ren_number on the form this is what i have done so far.

create table graphics_table(
bfile_id varchar(20),
bfile_loc bfile,
bfile_type varchar2(4)
)
/

then

INSERT INTO graphics_table
VALUES(4,bfilename('C:\PHOTO\','SRB000002.JPG'),'JPEG');

ist right?

what do I right on the form now?

Please help.

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604922 is a reply to message #604896]

Mon, 06 January 2014 03:20

shahzad-ul-hasan
Messages: 643
Registered: August 2002

Senior Member

send me your fmb so i find /locate the error was????

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604963 is a reply to message #604922]

Mon, 06 January 2014 09:52

kilimanjaro
Messages: 151
Registered: May 2009
Location: Tanzania

Senior Member

Hi shahzad

Here is the form.

I removed the image earlier so as I could proceed with other stuff on the same form.

Thank you.

Attachment: students_details.fmb
(Size: 228.00KB, Downloaded 2239 times)

Report message to a moderator

Re: IMAGE ON FORM 6i [message #604966 is a reply to message #604963]

Mon, 06 January 2014 10:25

shahzad-ul-hasan
Messages: 643
Registered: August 2002

Senior Member

create a folder on d-Drive as:
d:\photo\
and put th (reg_number.jpg) files in that and execute it.
please check the attached form.

[Updated on: Mon, 06 January 2014 10:48]

Report message to a moderator

Re: IMAGE ON FORM 6i [message #605663 is a reply to message #604916]

Mon, 13 January 2014 04:26

jgjeetu
Messages: 373
Registered: July 2013
Location: www.Orafaq.com/Forum

Senior Member

jgjeetu@gmail.com

see this video http://www.youtube.com/watch?v=Ai2mPwtaues

Report message to a moderator

Re: IMAGE ON FORM 6i [message #647007 is a reply to message #604963]

Mon, 18 January 2016 01:40

limon
Messages: 20
Registered: October 2015
Location: Dhaka, Bangladesh

Junior Member

Hi bro ''Mr.kilimanjaro '' . Please upload sql file for student_details.fmb. When run this then required some table. Please upload sql file.

[Updated on: Mon, 18 January 2016 01:45] by Moderator

Report message to a moderator

Previous Topic:	open url inside orcle forms 6i
Next Topic:	Tab Pages in Forms

Goto Forum:

-=] Back to Top [=-

[ Syndicate this forum (XML) ] [

]

Current Time: Sat Feb 08 17:39:32 CST 2025
