Problem calling a report from that have a chart [message #402881]

Tue, 12 May 2009 23:46

athar.fitfd@hotmail.com
Messages: 193
Registered: October 2007
Location: pakistan

Senior Member

Hi

Everyone, hope you all will be fine.

Friends , i have a problem to call a report that a chart on it

from forms.

The error is as under

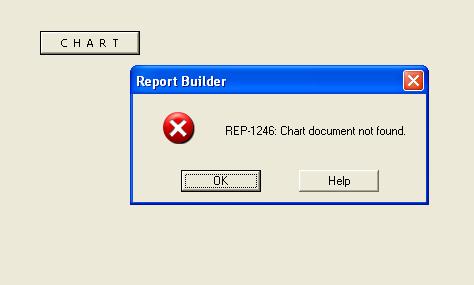

Rep-1246 Chart document not found.

What can be the reason.

thanks

Athar /forum/fa/6197/0/

Attachment: chrt.JPG
(Size: 11.08KB, Downloaded 3054 times)

Report message to a moderator

Re: Problem calling a report from that have a chart [message #403152 is a reply to message #402881]

Wed, 13 May 2009 23:53

athar.fitfd@hotmail.com
Messages: 193
Registered: October 2007
Location: pakistan

Senior Member

i am still waiting for

response

regards

Athar.

Report message to a moderator

Re: Problem calling a report from that have a chart [message #403648 is a reply to message #403152]

Sun, 17 May 2009 20:18

djmartin
Messages: 10181
Registered: March 2005
Location: Surges Bay TAS Australia

Senior Member
Account Moderator

Have you ever been able to get a chart to work?

Does the directory or chart name have a space in its name?

Please post your code (using 'code' tags).

David

Report message to a moderator

Re: Problem calling a report from that have a chart [message #689793 is a reply to message #403648]

Tue, 23 April 2024 23:56

Rizwi
Messages: 21
Registered: June 2014
Location: DUBAI

Junior Member

any example.my file namd is YEAR.rdf

I have run onlye Report value and chart Report is showing but run from form
Add_Parameter(pl_id,'DESTYPE',TEXT_PARAMETER,'Screen');

Run_Product(REPORTS, '\\192.168.12.169\newmis\Developement\New folder (2)\YEAR',SYNCHRONOUS, RUNTIME,FILESYSTEM, pl_id);

show error -REP-1246: Chart document not found.

ctrl+shif+k file genrate - : ~YEAR_rdf.rdf

Report message to a moderator

Re: Problem calling a report from that have a chart [message #689794 is a reply to message #689793]

Wed, 24 April 2024 00:15

Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe

Senior Member
Account Moderator

Forms 6i is an old piece of software. I suspect it has difficulties in working with folders whose names contains spaces, as well as some other characters different from letters and numbers (such as parenthesis you have).

I'd suggest you to rename "New folder (2)" to something else; if you can't find anything better than what Windows suggests, rename it to "new_folder_2". Then try again.

Report message to a moderator

Re: Problem calling a report from that have a chart [message #689795 is a reply to message #689794]

Wed, 24 April 2024 00:25

Michel Cadot
Messages: 68732
Registered: March 2007
Location: Saint-Maur, France, https...

Senior Member
Account Moderator

You may also try using the old 8.3 name of the folder:

E:\>mkdir "New folder (2)"

E:\>dir /X N*
 Le volume dans le lecteur E s'appelle Data
 Le numéro de série du volume est 4A9F-7C49

 Répertoire de E:\

24/04/2024  07:22    <REP>          NEWFOL~1     New folder (2)
               0 fichier(s)                0 octets
               1 Rép(s)   7 216 553 984 octets libres

As you can see the new "New folder (2)" folder is also named "NEWFOL~1".

Report message to a moderator

Re: Problem calling a report from that have a chart [message #689803 is a reply to message #689794]

Thu, 25 April 2024 01:29

Rizwi
Messages: 21
Registered: June 2014
Location: DUBAI

Junior Member

CHANGE THE NAME OF GRAPH.SHOW ERROR REP-1246 DOCUMENT NOT FORM MAY BE
GRAPH60_PATH PROBLEM.
inside oracle_home/jlib/bigraphbeen.jar
bigraphbeen.jar not availble.plsease send me bigraphbeen.jar file.i try from google but it is not availba.

Report message to a moderator

Re: Problem calling a report from that have a chart [message #689822 is a reply to message #689795]

Wed, 08 May 2024 02:34

Rizwi
Messages: 21
Registered: June 2014
Location: DUBAI

Junior Member

REP-1246 REP-1246: Chart document not found.
Report builder on my system and application in Server and path is already share and report is run from server form but add graph error( Chart document not found) show and file is RDF

Y:\NEWMIS\Developement\GRAPH\TEST.RDF

ONLY REPORT BUIDER DATA IS SHOWING BUT ADD GRAPH RUN FROM FORM THEN SHOWING ERROR.. PLEASE HELP ME.

ONLY C AND D DRIVE AVAILABLE.

SIR WAITTING.......................................

[Updated on: Wed, 08 May 2024 02:47]

Report message to a moderator

Re: Problem calling a report from that have a chart [message #689823 is a reply to message #689822]

Wed, 08 May 2024 03:59

cookiemonster
Messages: 13963
Registered: September 2008
Location: Rainy Manchester

Senior Member

If only C and D drives are available why are you trying to use something on Y?

Report message to a moderator

Re: Problem calling a report from that have a chart [message #689824 is a reply to message #689823]

Thu, 09 May 2024 03:34

Rizwi
Messages: 21
Registered: June 2014
Location: DUBAI

Junior Member

middleware forms and Report instally my system and form6i install on company server and Report design in my system not server. i have share the folder my system folder to server and mapping to Y drive.
report compile run paper layout then run report and graph. but i have run from server form then Report is running but add graph error show REP-1246 DOCUMENT IS NOT FOUND.

Report message to a moderator
