<Mirroring Of Schema Through Streams>

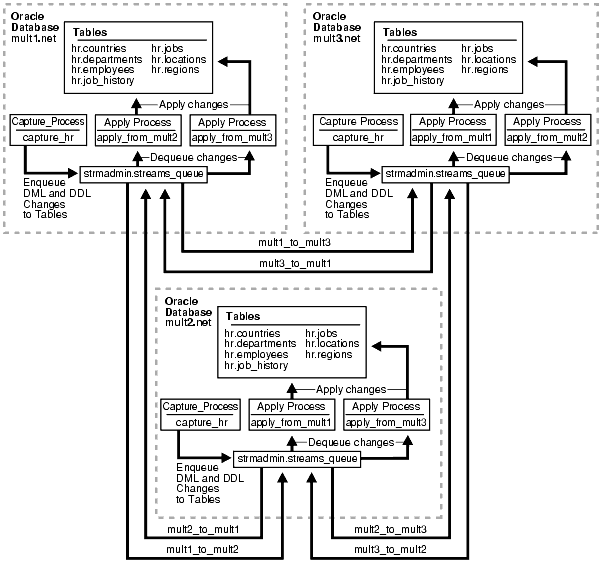

Streams Can Be used For Replication:-

The processing of streams is divided into three
main processes (Capture, Staging and Apply):

·The capture process is an optional
 background process that mines DDL
 and DML changes from the redo logs and wraps them up as
 Logical Change Records (LCRs). In addition to the default
 capture mechanism user defined events can be enqueued
 directly. Currently, the capture process cannot capture
 changes to index-organized tables(Only Regular Tables).

·Staging involves storing the LCRs in queues of datatype
 SYS.ANYDATA LCRs can be propogated between a source and
 destination staging area in different databases if necessary.
 Propagation is scheduled using job queues.

·The apply process is an optional
 background process that dequeues LCRs and either applies them
 directly or for user-defined messages passes them as
 parameters to user-defined packages.


Prerequisites:-
1)AQ_TM_PROCESSES:-
This parameter establishes queue monitor process(At Least
1)These queue monitor processes are responsible for managing
  time-based operations of messages such as delay and
  expiration, cleaning up retained messages after the
  specified  detention time, and cleaning up consumed messages
  if the retention time is 0.

2)GLOBAL_NAMES :Must Be true and should contain name of the
  databases that will be used in replication.

3) JOB_QUEUE_PROCESSES:Must be set to atleast 2.

4) COMPATIBLE: Must be 9.2.0 or higher.

5) LOG_PARALLELISM:Must be set to 1.

6) Any Database that is producing changes must be in ARCHIVELOG Mode.(In our case it will be production databases).

Steps For Implementing:-

1)Alternate tablespace for LogMiner tables.By default LogMiner
  tables are in SYSTEM tablespace.
  EXECUTE DBMS_LOGMNR_D.SET_TABLESPACE('&tspace_name');

2)Create the Streams administrator and grant this user the
  necessary privileges. These privileges enable the user to
  manage queues, execute subprograms in packages related to
  Streams, create rule sets, create rules, and monitor the
  Streams environment by querying data dictionary views and
  queue tables.

  GRANT CONNECT, RESOURCE, SELECT_CATALOG_ROLE   TO strmadmin
  IDENTIFIED BY strmadminpw;

  ACCEPT streams_tbs PROMPT 'Enter Streams administrator
  tablespace on mult1.net:'

  ALTER USER strmadmin DEFAULT TABLESPACE &streams_tbs  QUOTA
  UNLIMITED ON &streams_tbs;

  GRANT EXECUTE ON DBMS_APPLY_ADM TO strmadmin;
  GRANT EXECUTE ON DBMS_AQADM     TO strmadmin;
  GRANT EXECUTE ON DBMS_CAPTURE_ADM       TO strmadmin;
  GRANT EXECUTE ON DBMS_PROPAGATION_ADM   TO strmadmin;
  GRANT EXECUTE ON DBMS_STREAMS_ADM       TO strmadmin;

  BEGIN
   DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE(
    privilege    => DBMS_RULE_ADM.CREATE_RULE_SET_OBJ,
    grantee      => 'strmadmin',
    grant_option => FALSE);
  END;
 /

 BEGIN
  DBMS_RULE_ADM.GRANT_SYSTEM_PRIVILEGE(
    privilege    => DBMS_RULE_ADM.CREATE_RULE_OBJ,
    grantee      => 'strmadmin',
    grant_option => FALSE);
 END;
3)Create streams Queue By executing this procedure:-

  EXEC  DBMS_STREAMS_ADM.SET_UP_QUEUE();

  Running This procedure will do following things:-

  1)Create a queue table named STREAMS_QUEUE_TABLE.
  2)Create a queue named streams_queue.
  3)Starts The Queue

4) Create database links from the current database to the
   other  databases in the environment.

    CREATE DATABASE LINK '&dblinkname' CONNECT TO strmadmin
    IDENTIFIED BY strmadminpw USING '&targetdatabase';
5) Prepare the tables for latest time Conflict resolution.(May
   not be used in our case)

6) Supplement Logging:Database level and table level.
   Additional information required by capture process to
   propagate changes).

7) Create Capture Process:-

    BEGIN
      DBMS_STREAMS_ADM.ADD_SCHEMA_RULES(
        schema_name   => 'hr'
        streams_type  => 'capture',
        streams_name  => 'capture_hr',
        queue_name    => 'strmadmin.streams_queue',
        include_dml   =>  true,
        include_ddl   =>  true);
    END;
8) Create Apply process:-(Need to Be Configured at Target
   Database because in our case Changes will be propagated
   from  Production Database)

   BEGIN
      DBMS_STREAMS_ADM.ADD_SCHEMA_RULES(
      schema_name     => 'hr',
      streams_type    => 'apply',
      streams_name    => 'apply_from_mult2',
      queue_name      => 'strmadmin.streams_queue',
      include_dml     =>  true,
      include_ddl     =>  true,
      source_database => 'mult2.net');
  END;


9) Configure Propagation Of Changes:-

   BEGIN
    DBMS_STREAMS_ADM.ADD_SCHEMA_PROPAGATION_RULES(
     schema_name               => 'hr',
     streams_name              => '<StreamName>',
     source_queue_name         => 'strmadmin.streams_queue',
     destination_queue_name    => 'strmadmin.streams_queue@<TargetDatabase>',
     include_dml               =>  true,
     include_ddl               =>  true,
     source_database           => '<sourceDatabase>');
  END;

10) Configure Instantiation SCN.The instantiation SCN of the
    source table must be configured in the destination table
    before the apply process will work. If the destination
    table is already present this can be
    accomplished using a metadata only export/import:

      Export User
      Import User with STREAMS_INSTANTIATION=y

11) Start The Apply Process at target Database

    BEGIN
      DBMS_APPLY_ADM.SET_PARAMETER(
      apply_name  => '<apply_name>',
      parameter   => 'disable_on_error',
      value       => 'n');
   END;


    BEGIN
      DBMS_APPLY_ADM.START_APPLY(
      apply_name  => '<apply_name>');
   END;

12) Start The Capture Process at source Database:-

     BEGIN
        DBMS_CAPTURE_ADM.START_CAPTURE(
        capture_name  => 'capture_hr');
    END;
