tabuler recoreds [message #324410]

Mon, 02 June 2008 06:58

AshrafKittaneh26
Messages: 18
Registered: June 2008
Location: UAE

Junior Member

hi guys,

I have a prob. that i want to color the tabuler with two deferent colores, like for example: first recored with red and seconed one with blue, and thired with red, and forth with blue .....etc.
it means one by one. Confused

its urgent guys.
thanks.

Report message to a moderator

Re: tabuler recoreds [message #324432 is a reply to message #324410]

Mon, 02 June 2008 08:25

Dipali Vithalani
Messages: 278
Registered: March 2007
Location: India

Senior Member

You can do it by using set_record_property ().
you have to write a code for loop which moves from first to last record and for each record, using above function, you can set background color , foreground color, or any other property.

Regards.

Report message to a moderator

Re: tabuler recoreds [message #324478 is a reply to message #324432]

Mon, 02 June 2008 12:40

Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe

Senior Member
Account Moderator

SET_RECORD_PROPERTY? Would you, vithalani_dipali, mind to share the code how to do that? Because, the only valid record status in my Forms Builder version (10g) is "STATUS"; no foreground color, no background color.

In the meantime, I'd like to suggest another approach: deciding which record to paint to which color is easy - MOD function will help us do that. Forms built-in we have to use is SET_ITEM_INSTANCE_PROPERTY. Unfortunately, there's no way to paint the whole record at once - you'll have to do it item by item.

Here's an example: create two visual attributes: "red" will have "red" background, while "blue" will have "blue" background. POST-QUERY trigger on the "dept" block (based on Scott's schema) looks like this:

if mod(:system.trigger_record, 2) = 0 then
   set_item_instance_property('deptno', current_record, visual_attribute, 'red');
   set_item_instance_property('dname' , current_record, visual_attribute, 'red');
   set_item_instance_property('loc'   , current_record, visual_attribute, 'red');
else
   set_item_instance_property('deptno', current_record, visual_attribute, 'blue');
   set_item_instance_property('dname' , current_record, visual_attribute, 'blue');
   set_item_instance_property('loc'   , current_record, visual_attribute, 'blue');
end if;

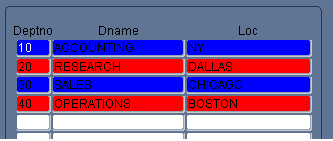

This is the final result:

/forum/fa/4390/0/
