BAR Chart Scaling Problem [message #276851]

Fri, 26 October 2007 08:12

musman
Messages: 147
Registered: July 2007
Location: Lahore

Senior Member

i have bar chart with baseline at zero in my report.

i want to change scaling along y-axis.
like now it is now stating from 0 goes like..
0,2,4,6,8,10,12....
so when value like (e.g 70) comes along y-axis.it make a mess in chart.
so i want scaling like..
0,10,20,30,40,....

How to do this any Idea or Suggestion.

[Updated on: Fri, 26 October 2007 08:13]

Report message to a moderator

Re: BAR Chart Scaling Problem [message #276914 is a reply to message #276851]

Fri, 26 October 2007 15:34

Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe

Senior Member
Account Moderator

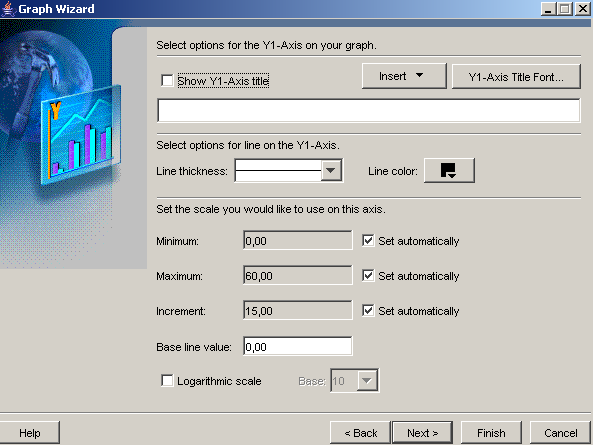

Oracle Reports Builder 10g takes care about it. Here's a screenshot:

/forum/fa/3302/0/

As you can see, there are 3 checkboxes that allow you to automatically set the scale of the Y-axis. If you aren't satisfied with this and there's a chance of large disproportion among values (for example, Y-axis values of 0.5, 2.7, 230.3, 1000.2), check the logarithmic scale checkbox.
