Report frame overwriting [message #536128]

Mon, 19 December 2011 05:51

athar.fitfd@hotmail.com
Messages: 193
Registered: October 2007
Location: pakistan

Senior Member

Hi,

child frame is overwriting the parent frame on next page of report.
what might be the problem

Thanks & Regards
Athar

Report message to a moderator

Re: Report frame overwriting [message #536134 is a reply to message #536128]

Mon, 19 December 2011 07:22

Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe

Senior Member
Account Moderator

I have difficulties in imagining what you are saying and how it looks like. Could you post a screenshot (possibly both layout editor as well as report output)?

Report message to a moderator

Re: Report frame overwriting [message #536138 is a reply to message #536134]

Mon, 19 December 2011 07:45

athar.fitfd@hotmail.com
Messages: 193
Registered: October 2007
Location: pakistan

Senior Member

how can i upload screenshots from my local computer. there seems no option for uploading images

Report message to a moderator

Re: Report frame overwriting [message #536139 is a reply to message #536138]

Mon, 19 December 2011 07:50

Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe

Senior Member
Account Moderator

Not in a quick reply; go to "Reply" (there's a button in a right bottom corner of every messages, among "Delete", "Edit", "Reply" and "Quote").

That page allows you to upload files and attach them to your messages.

Report message to a moderator

Re: Report frame overwriting [message #536141 is a reply to message #536139]

Mon, 19 December 2011 08:05

athar.fitfd@hotmail.com
Messages: 193
Registered: October 2007
Location: pakistan

Senior Member

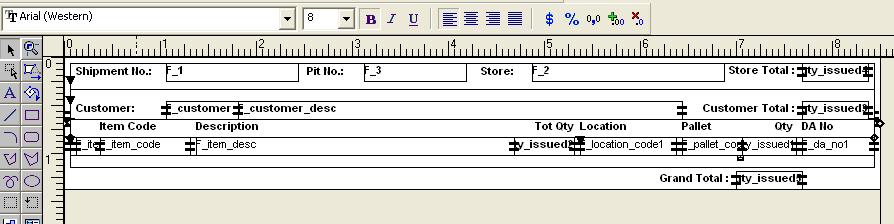

Designer

Attachment: Designer.JPG
(Size: 47.82KB, Downloaded 2184 times)

Report message to a moderator

Re: Report frame overwriting [message #536142 is a reply to message #536141]

Mon, 19 December 2011 08:09

athar.fitfd@hotmail.com
Messages: 193
Registered: October 2007
Location: pakistan

Senior Member

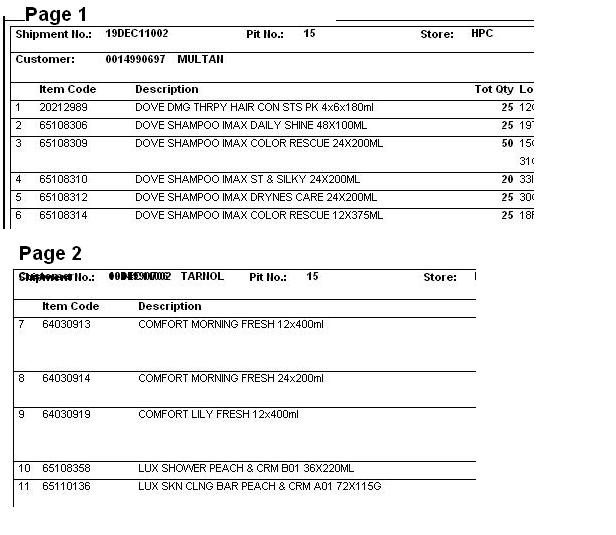

Output

Attachment: output.JPG
(Size: 55.94KB, Downloaded 2126 times)

Report message to a moderator

Re: Report frame overwriting [message #536156 is a reply to message #536142]

Mon, 19 December 2011 11:01

Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe

Senior Member
Account Moderator

Much clearer now; thank you.

Try to enclose SHIPMENT_NO, PIT_NO, STORE and STORE_TOTAL into its own frame (not a repeating one, just a frame). In order to do it easily:
- select these 4 fields and their labels
- group them (Ctrl + G)
- draw a frame around them
- move the frame to the background (so that it contains these 4 fields and their labels)
- ungroup the fields (Ctrl + Shift + G)

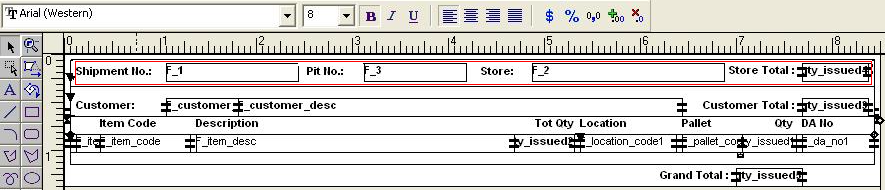

You might need to adjust fields a little bit so that you could draw a frame (as they are top aligned with the frame), but I suppose that it won't be too difficult. The final result should look like this (note the red "frame") (I did that in MS Paint, it is not a real report layout):

/forum/fa/9641/0/

Attachment: rep_frame.PNG
(Size: 85.19KB, Downloaded 2175 times)

Report message to a moderator

Re: Report frame overwriting [message #536231 is a reply to message #536156]

Mon, 19 December 2011 19:38

athar.fitfd@hotmail.com
Messages: 193
Registered: October 2007
Location: pakistan

Senior Member

Thanks a lot for your kind reply

Report message to a moderator
