Graphics in PDF reports [message #428022] Mon, 26 October 2009 21:05 Go to next message
rkgoyal98
Messages: 39
Registered: October 2009
Member
Hello,

We have converted a few reports from 6i and these reports are run through run_report_object method. We have set desformat to 'pdf' and the report is running fine. However on some of the items in PDF format we find that there is a rectangular border on the item. This border is on only a few items and not all, We want to remove the border and have been looking at properties inspector and we are not able to find any property by which we can set border as none. Kindly advise what type of solution cn be used. I am attaching one sample report.

Border coming up on billunit, bankwisetotal

Regards

Report message to a moderator

Re: Graphics in PDF reports [message #428062 is a reply to message #428022] Tue, 27 October 2009 01:03 Go to previous message
Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe
Senior Member
Account Moderator

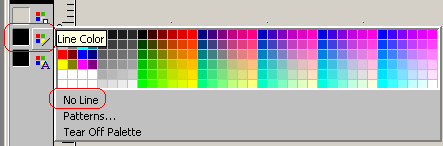

It appears that these items' line color is set to black (or whichever color it is). Open Paper Layout editor, select items and set their Line Color property to "No line".

/forum/fa/6915/0/

Report message to a moderator
