background image [message #339945]

Sun, 10 August 2008 01:42

durgadas.menon
Messages: 365
Registered: December 2007
Location: Nowhere

Senior Member

Hi,

I am trying to put an image item in the background and buttons in the front but it is not working. I read in this forum that I will have to import the image but the online help does not give me an exact detail, can you please help me?

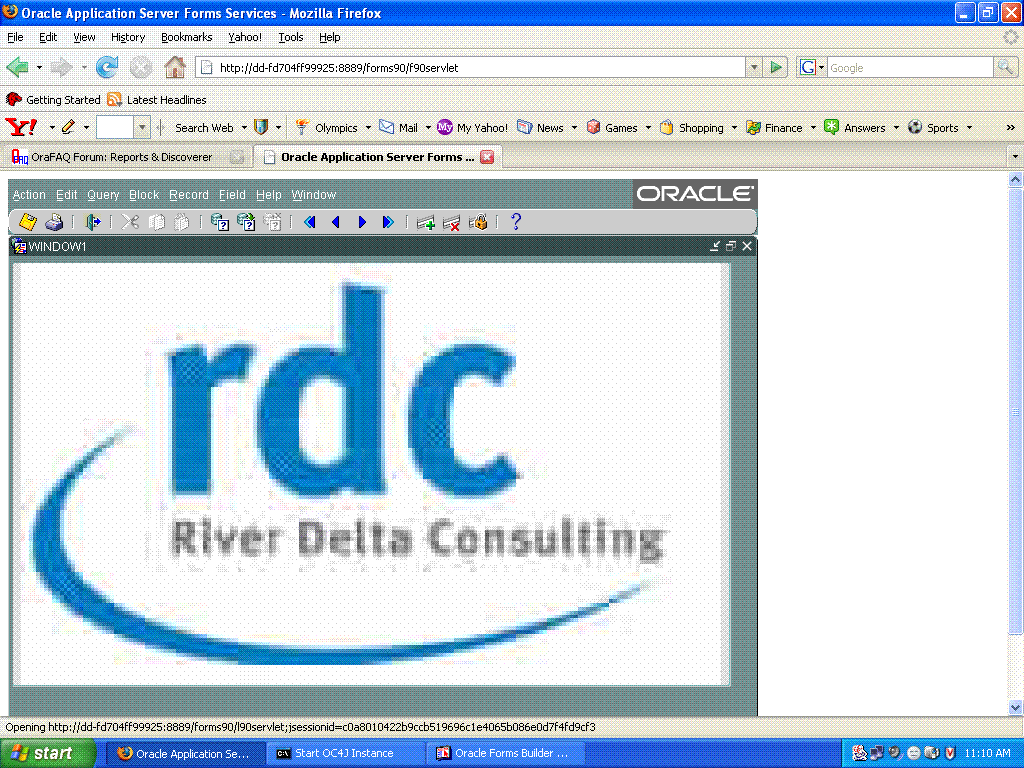

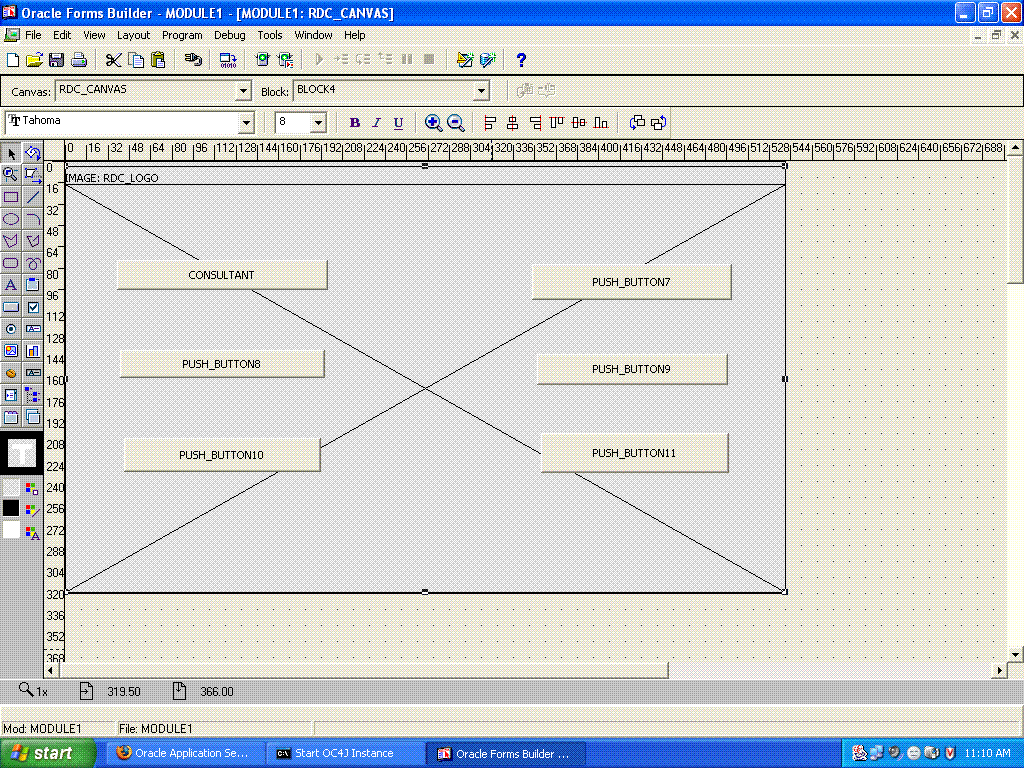

The attached screen shot (layout.gif) shows how my layout editor view and display_page.gif shows how it looks when I run it. The buttons are not seen embosed so it does not serve the purpose. Can you hint as to how I should go about trying to accomplish this?

Attachment: layout.gif
(Size: 60.55KB, Downloaded 893 times)

Report message to a moderator

Re: background image [message #339946 is a reply to message #339945]

Sun, 10 August 2008 01:43

durgadas.menon
Messages: 365
Registered: December 2007
Location: Nowhere

Senior Member

No Message Body

Attachment: display_page.gif
(Size: 98.22KB, Downloaded 883 times)

Report message to a moderator

Re: background image [message #339984 is a reply to message #339946]

Sun, 10 August 2008 14:37

Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe

Senior Member
Account Moderator

In Forms Builder 10g:
- create a block
- go to Edit menu - Import - Image. Browse for an image, import it
- run the form

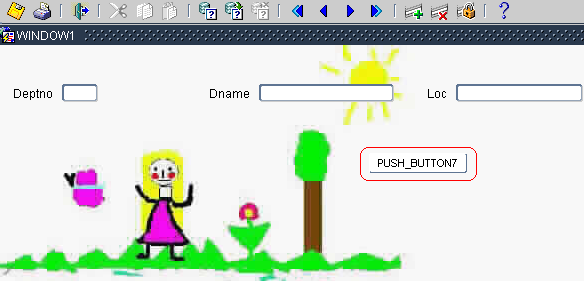

The result DOES contain items (including a button).

/forum/fa/4765/0/

Attachment: frm_image_background.PNG
(Size: 61.22KB, Downloaded 3294 times)

Report message to a moderator

Re: background image [message #340082 is a reply to message #339984]

Mon, 11 August 2008 06:32

durgadas.menon
Messages: 365
Registered: December 2007
Location: Nowhere

Senior Member

Thanks for the reply, this is exactly what I was looking for but not able to do it at my end.

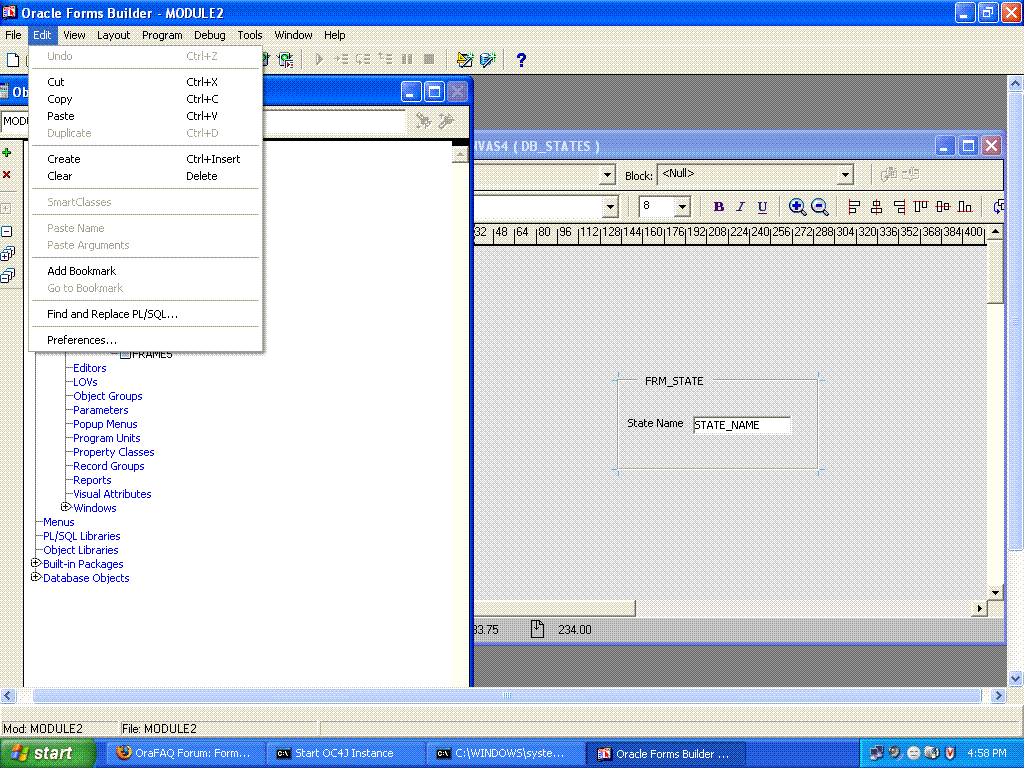

Attached is the Edit Menu screen shot but the import option does not seem to be there. I am I looking at the wrong place?

Attachment: Edit_Menu.gif
(Size: 60.15KB, Downloaded 893 times)

Report message to a moderator

Re: background image [message #340084 is a reply to message #340082]

Mon, 11 August 2008 06:52

Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe

Senior Member
Account Moderator

As I've said,

In Forms Builder 10g: ...

So, did you bother to check other menus? How about File - Import?

Report message to a moderator

Re: background image [message #340105 is a reply to message #340084]

Mon, 11 August 2008 08:26

durgadas.menon
Messages: 365
Registered: December 2007
Location: Nowhere

Senior Member

Yes, there is an import PL/SQL option there but I thought that was not relevant and moreover it was greyed (not able to select). I looked all the menu's but could not fine the import option.

Would it be within some other option? Or is it possible that the software that I have downloaded from the oracle website may not have it as it is free and only the paid version has it.

Report message to a moderator

Re: background image [message #340251 is a reply to message #340105]

Tue, 12 August 2008 01:57

Littlefoot
Messages: 21823
Registered: June 2005
Location: Croatia, Europe

Senior Member
Account Moderator

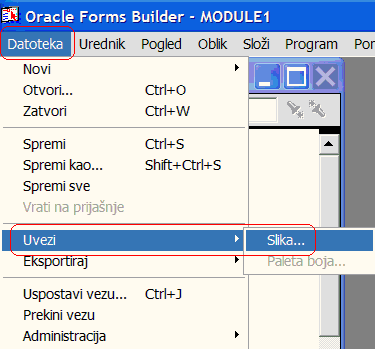

This is a screenshot of the Forms 6i Builder File menu; unfortunately, I didn't have access to English version so you'll have to live with Croatian one. Here's the online Croatian - English dictionary (if you wish to translate certain menu items), or you can believe my words: "Datoteka (File) - Uvezi (Import) - Slika ... (Image ...)" is what you are looking for. This item is unavailable if there's no form in the Object Navigator (either a newly created one, or the one you have just opened).

/forum/fa/4780/0/

Attachment: frm_6i_import_picture.PNG
(Size: 13.44KB, Downloaded 3214 times)

Report message to a moderator
